Surface Coating Technology of Cosmetic Packaging Materials

time :2024-05-15

Surface Coating Technology in Cosmetic packaging Materials

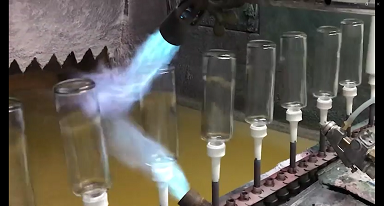

The surface coating process in cosmetic packaging plays a vital role in enhancing the visual appeal and functionality of packaging materials. Whether for glass bottles, plastic jars, essential oil bottles, or sprayer bottles, surface coating provides a protective and decorative layer. It not only makes cosmetic packaging more attractive to consumers but also boosts its resistance to corrosion, wear, and external elements, ensuring better protection for the product inside.

图1

About the Spraying Process

Spraying, in the context of cosmetic packaging, is a coating method where a spray gun or centrifugal atomizer disperses the material into fine droplets using pressure or centrifugal force. These droplets are then applied to the surface of the object to form a coating. The spraying process can be divided into different types, such as air spraying, airless spraying, electrostatic spraying, and other derivatives like high-flow low-pressure atomization, thermal spraying, automatic spraying, and multi-group spraying.

Characteristics of the Spraying Process

  1. Protective Effects
    The spraying process protects cosmetic packaging materials—such as glass bottles and plastic jars—from environmental elements like light, rain, and moisture. It serves as an effective method for preventing corrosion and extending the life of cosmetic containers.

  2. Decorative Function
    Spraying adds a layer of color, brilliance, and gloss to packaging, making cosmetic packaging more visually appealing. This enhancement not only attracts consumers but also elevates the brand image and marketability of the products, whether it's a perfume bottle, lotion bottle, or any other skin care packaging.

  3. Special Features
    Spraying can also impart special properties to the packaging, such as waterproofing, fire resistance, anti-fouling, temperature indication, heat retention, and even sterilization. These features contribute to the overall functionality of cosmetic packaging, ensuring the product remains safe and effective for consumers.

Composition of the Spraying Process System

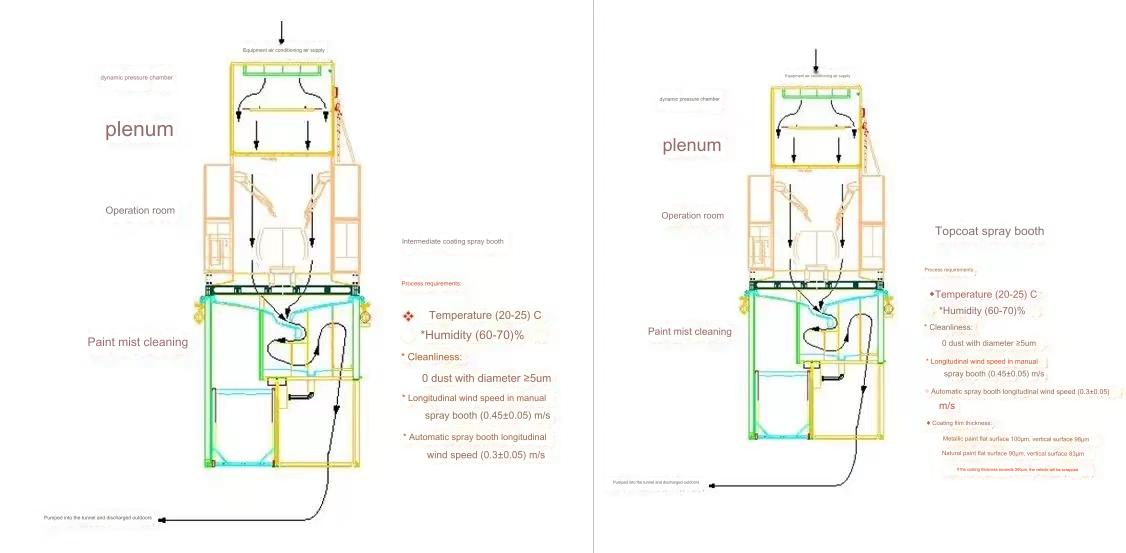

  1. Paint Spray Room
    A paint spray room is equipped with various systems to ensure optimal conditions for the spraying process:

    • Air Conditioning System: This system maintains clean, fresh air with controlled temperature, humidity, and dust removal.

    • Spray Booth Body: It includes dynamic pressure chambers, static pressure chambers, and spraying operation rooms.

    • Exhaust and Mist Collection System: This system helps capture and remove paint mist from the air to ensure a clean and safe working environment.

    • Waste Paint Removal Device: Used to filter out waste paint and recycle water, helping to maintain an eco-friendly workspace.

      图2

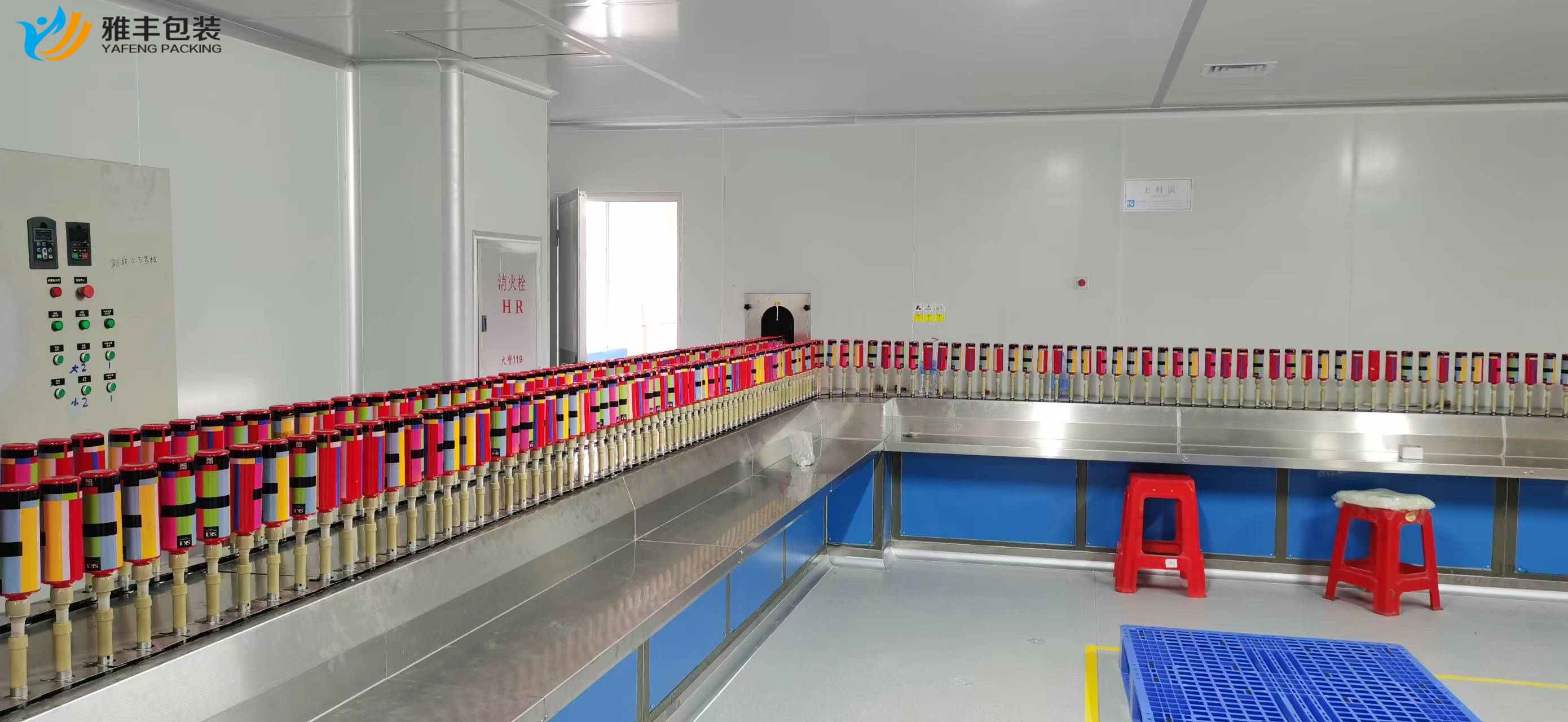

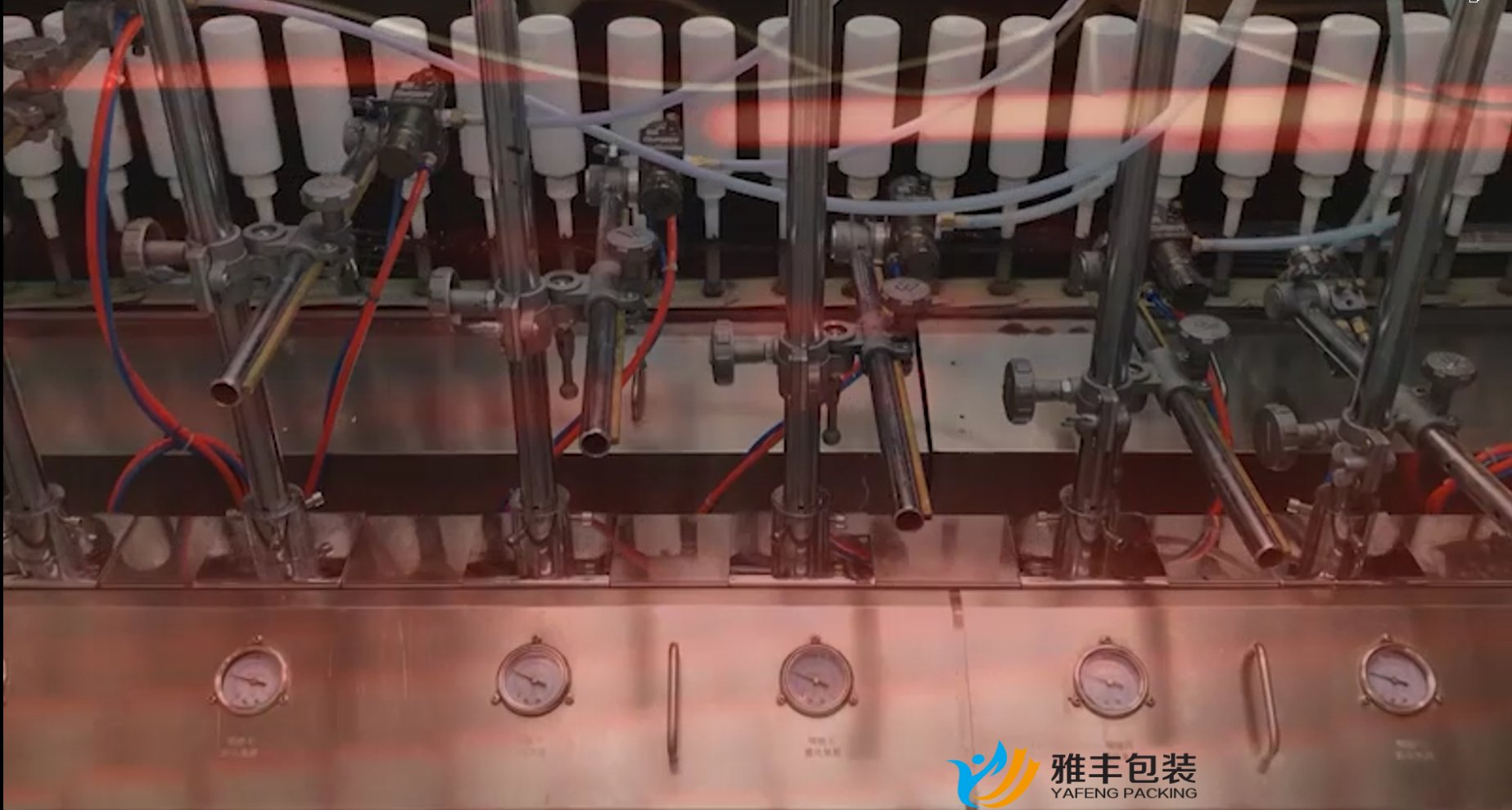

  2. Spraying Line
    The spraying line consists of several components for efficient operation:

    • Pre-treatment Equipment: This equipment prepares surfaces for coating, such as degreasing, phosphating, and cleaning the packaging before spraying.

    • Powder Spraying System: This system uses a cyclone and filter device to recover powder, allowing for quicker color changes.

    • Painting Equipment: These include oil-spraying booths or water curtain spray booths for even coating application on cosmetic containers.

    • Oven: Ovens are used for drying and curing the sprayed coatings, with different types based on heating methods like radiation or hot air circulation.

    • Heat Source System: Provides the necessary heat for drying and curing the coating. Different types of fuel, such as electricity or gas, can be used depending on the specific needs.

    • Electronic Control System: Monitors and controls the entire spraying process to ensure consistency and quality.

    • Suspension Conveyor Chain: Used to transport items through the various stages of coating, ensuring smooth and efficient handling.

      图3

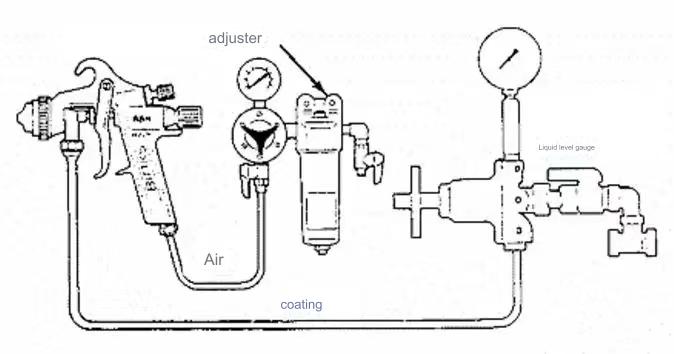

  3. Spray Gun
    A spray gun is a critical tool for the application of the coating material, allowing precise and even distribution of the coating across the surface of cosmetic packaging.

    图4

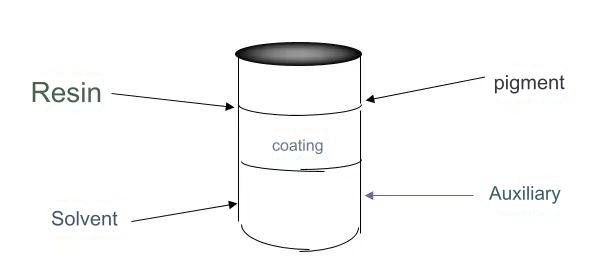

  4. Paint
    Paint is applied to the surface of cosmetic packaging to form a durable, protective, and aesthetically pleasing film. It plays a key role in both the functionality and decoration of packaging, offering anti-corrosion properties and creating a visually appealing finish for products like perfume bottles, skin care jars, and cosmetic caps.

    图5

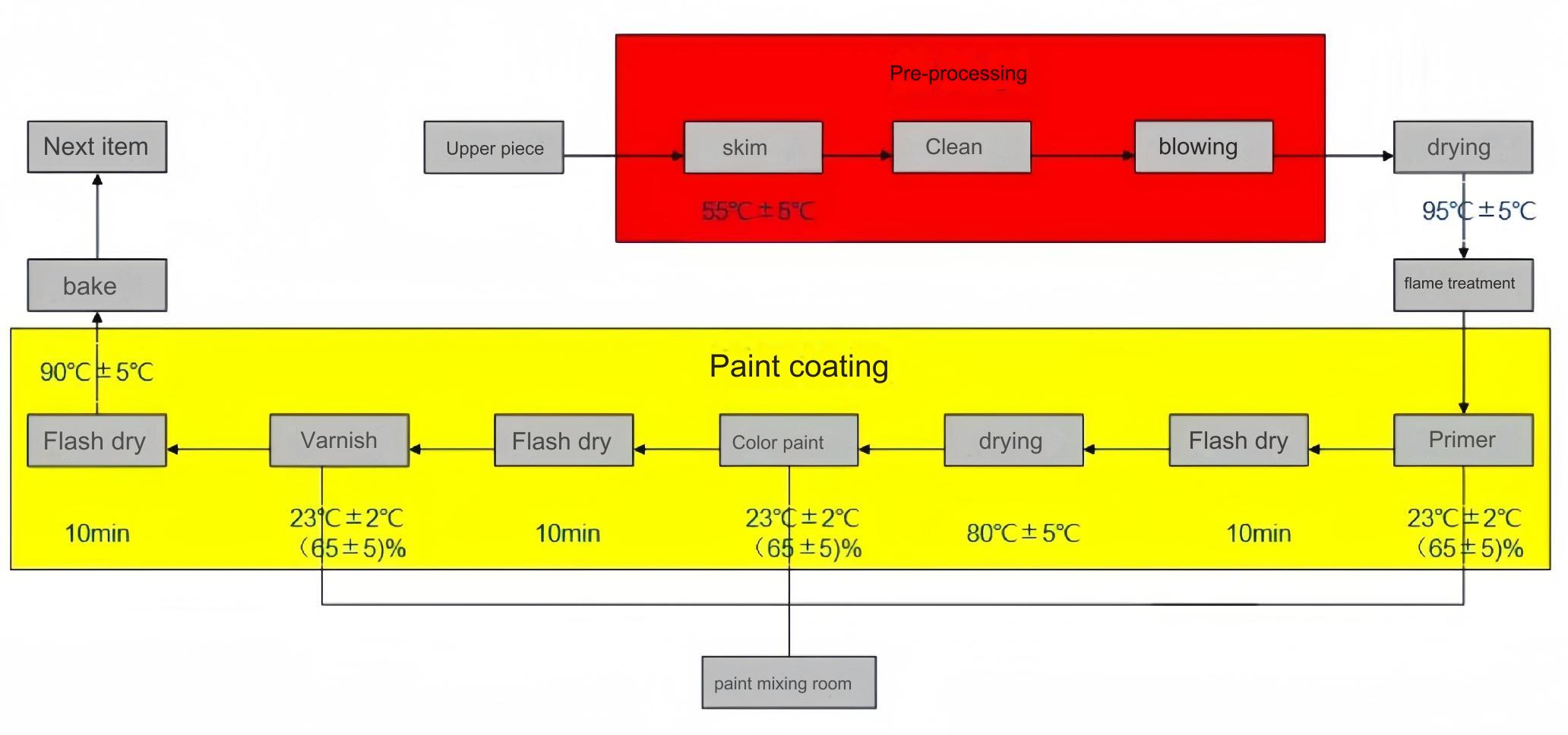

Basic Process Flow

The coating process for cosmetic packaging materials involves several stages, including pre-processing, application of coatings, and post-treatment.

图6

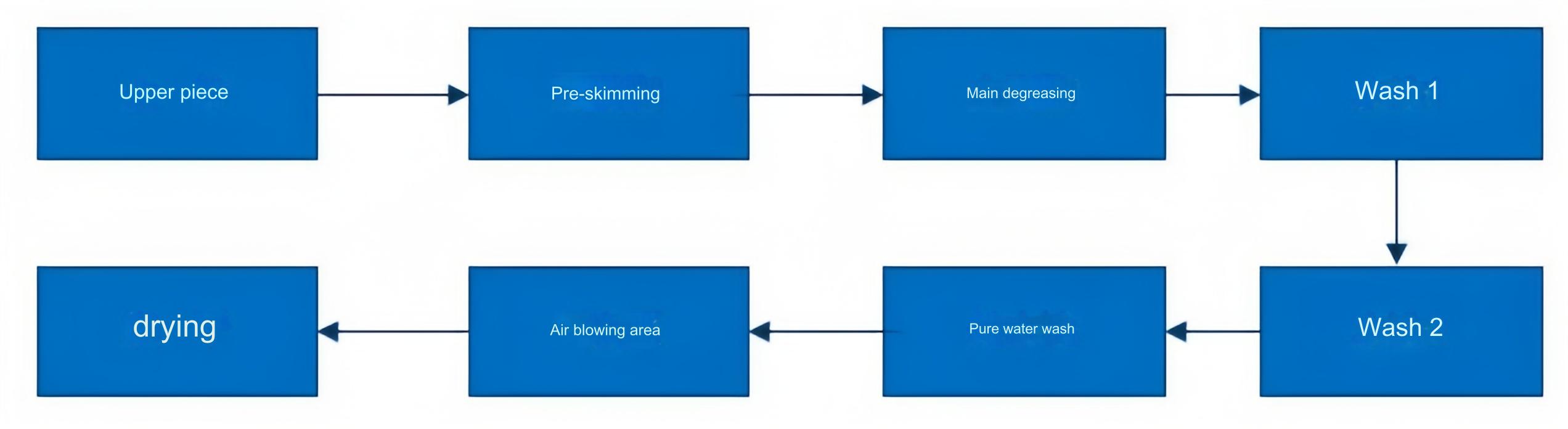

  1. Pre-processing
    Before the coating is applied, the surface of the cosmetic packaging must be prepared to ensure good adhesion. This includes degreasing, cleaning, and sometimes roughening the surface to improve the bonding of the coating material.

    • Pre-degreasing: Removes oils and contaminants from the surface.

    • Main Degreasing: Further cleaning to ensure proper adhesion of the paint.

    • Water Washing: Ensures that no residues from cleaning agents remain on the surface.

    • Drying: The packaging is dried to remove moisture before applying any coatings.

      图7

  2. Primer
    The primer is applied to improve adhesion, reduce color discrepancies, and mask any surface imperfections. Although not always visible, primers play an important role in ensuring that the final finish adheres properly to the packaging surface.

  3. Midcoat
    The midcoat layer is the first visible color layer of the packaging. This layer not only contributes to the visual appeal of cosmetic containers but also improves the overall physical and chemical properties of the packaging.

  4. Top Coat
    The top coat is the final layer applied, providing the packaging with high gloss and additional protective properties, including enhanced wear resistance, UV protection, and moisture resistance.

    图8

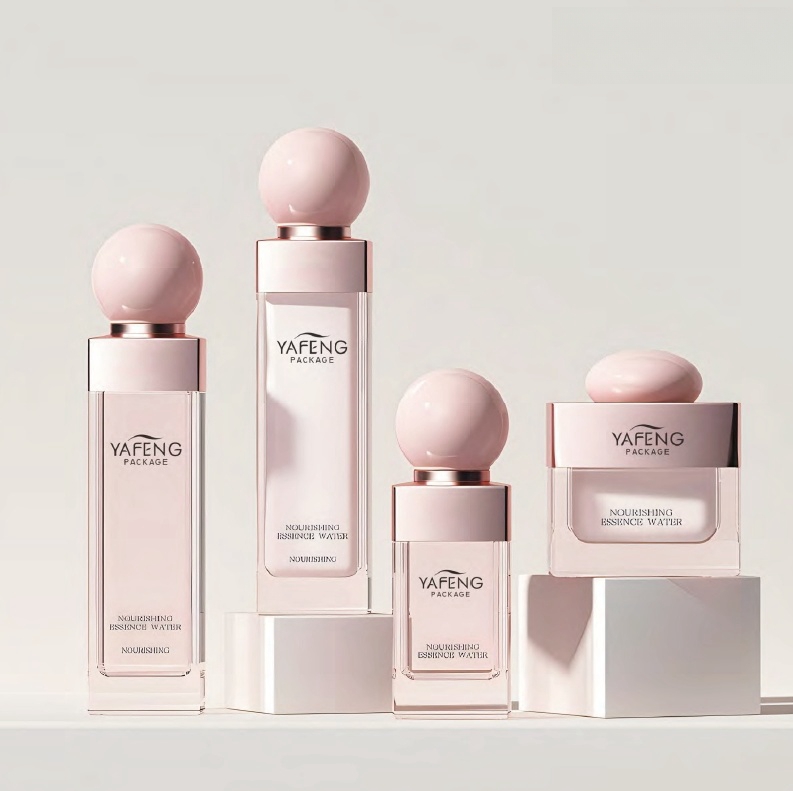

Application in Cosmetic Packaging

The spraying process is widely used in the cosmetic packaging industry, especially for items like glass perfume bottles, sprayer bottles, plastic jars, and lotion bottles. It is one of the main methods for adding color and finish to various components of cosmetic packaging, including pump heads, bottle caps, and other external parts. By using different types of coatings, brands can not only enhance the aesthetic value of their packaging but also improve its functionality and durability.

In recent years, there has been an increasing demand for recyclable packaging in the cosmetic industry. Surface coatings can be formulated to be compatible with recyclable materials, supporting sustainability efforts and reducing the environmental impact of cosmetic packaging.

cover

Conclusion

Surface coating technology plays an essential role in cosmetic packaging, enhancing both the appearance and functionality of products like essential oil bottles, glass bottles, and plastic jars. From improving aesthetics to providing additional protective features, the spraying process is vital for ensuring high-quality packaging. With advancements in coating techniques and the growing trend toward sustainability, the cosmetic packaging industry continues to evolve, offering more visually appealing and environmentally friendly solutions.
